Technical Equipment

On an area of over 1,500 m², the Center for Textile Lightweight Engineering combines classic textile technology and innovative systems for composite production. The technical equipment on a semi-industrial scale enables both small pre-trials and the production of small series. The installed equipment in the research and test field are linked with a process control system, so that comprehensive data acquisition and evaluation is possible. The combination with the recorded consumption data, such as electricity, gas and compressed air consumption, as well as the environmental conditions, enables ecological and economic assessments of the done developments.



Any questions?

Your contact

Dipl.-Ing. (BA)
Marcel Hofmann
Manager Center for Textile Lightweight Engineering

Phone: +49 371 5274-205





  • A cutting and tearing machine to convert different kinds of textile waste material (consisting of high performance fibers) into processable staple fibers
  • Fibre opening and blending, fibre sizing
  • Web forming by use of monocharges or blends with synthetic and/or natural fibers based on the carding process or airlay process
  • Inline mechanical bonding methods: needle-punching and/or stitch-bonding
  • Inline quality monitoring systems
  • Determination of fibre orientation by using NOS 200
  • Determination of basis weight and thickness by using Qualiscan QMS-12
Processable fiber length30 - 120 mm
Working width500 - 1.000 mm
Working speedmax. 5 m/min
Possible area weight40 bis 1.500 g/m²
Veprocessable materialscarbon fibers, glass-, basalt- or natural fibers and blends with PP, PA, PES, PEI, PPS, PEEK
  • Consisting of staple fibers (100 % carbon fibers or fiber blends)
  • Inline bonding method to obtain a strand-like product
  • Production of cylindrical tubes resp. flanged bobbins
Processable fiber length
Working speed
Diameter
60 - 100 mm
4 - 10 m/min
8/12/16 mm (Hotmelt)
  • rCF-suitable Cetex Lab-Spinning-Machine (LSE-C)
Processable material
Spinning process
Number of spinning stations
Slivers or roves
Ringspinning process (Siro/Core)
6
  • carding, stretching and tape production by using fiber blends (rCF, natural fibers, thermo plastic fibers)
Processable fiber length
Tape area weight
Tape width
Working speed
60 - 100 mm
100 - 600 g/m²
¼ - 12 inches
4 - 20 m/min
  • High precision circular saw
  • Band saw

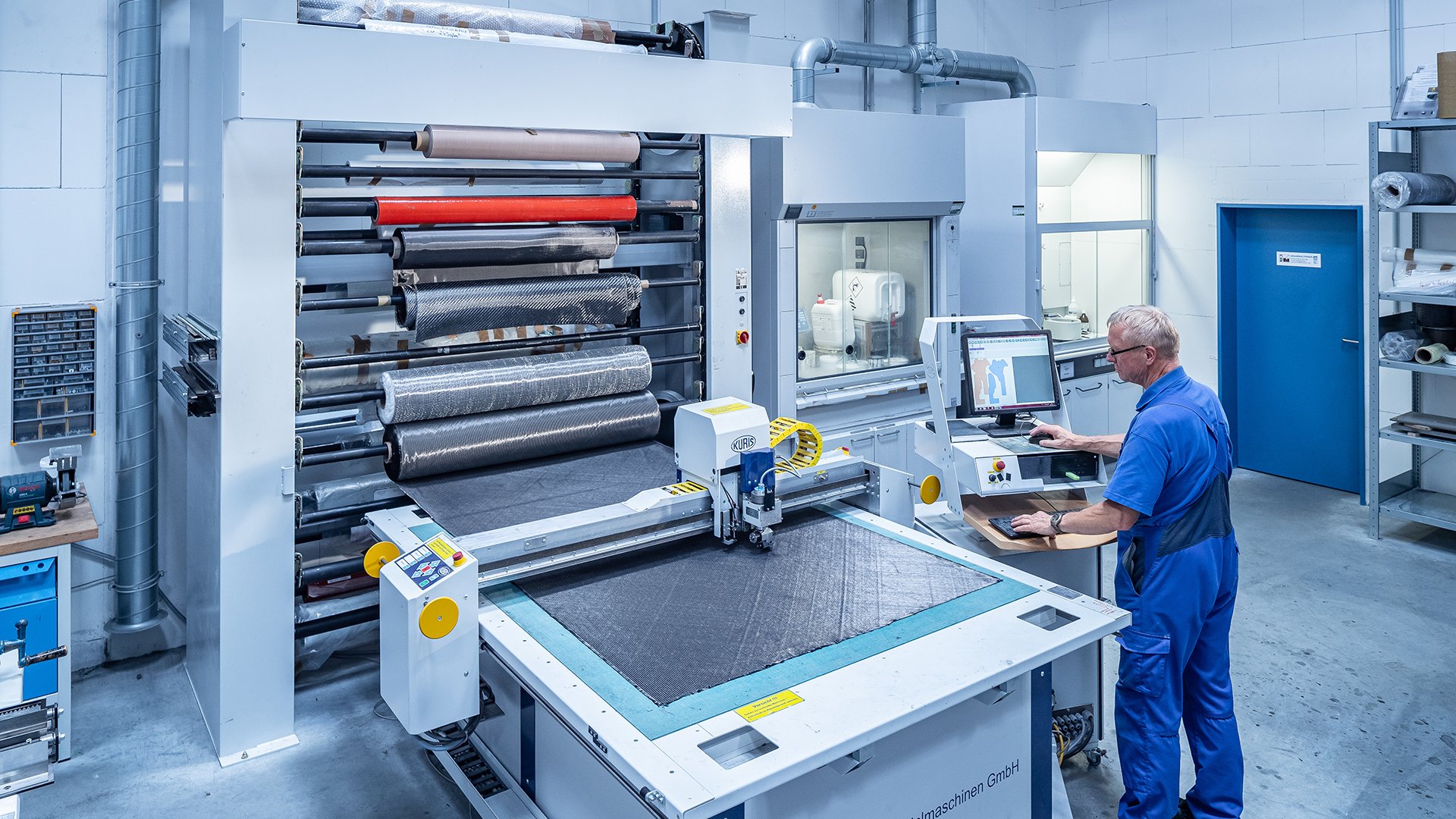

  • NC-milling machine
  • Different grinding machines
Cut surface
Cutting heads
1.600 x 1.350 mm
draw blade, active or passive roll knife, oscillating knives
  • Vacuum injection system
  • RTM technology (cold or warm curing)
  • Vacuum infusion incl. VAP®-method



  • Up to 300 °C
Working width
Max. press capacity
Temperature range
610 mm
2.000 kN
up to 450°C

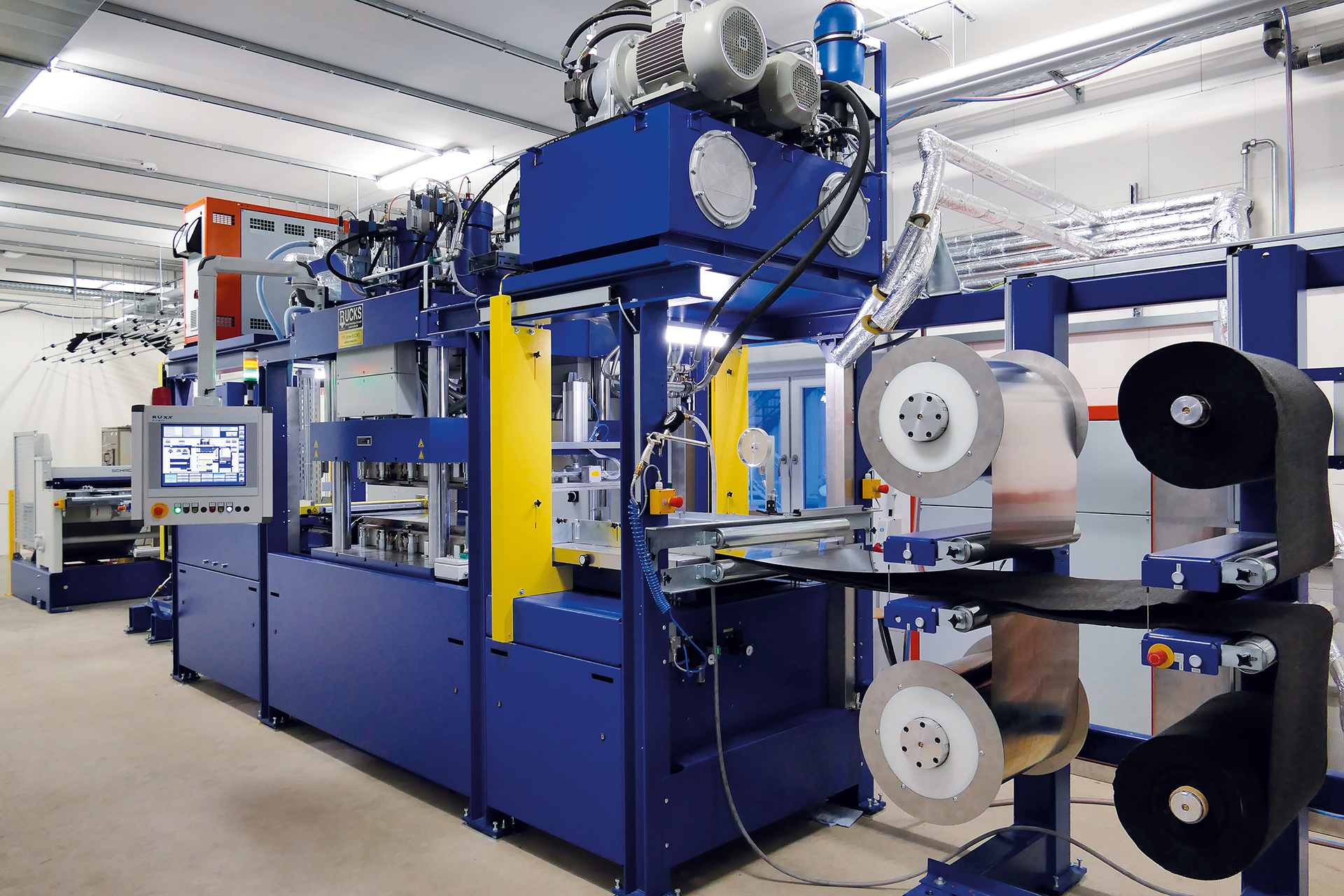

6 unwinder
Position and pressure controlled or combined managment system



Max. press capacity
Press area
Max. temperature
Heating rate
Cooling rate
2.000 kN
900 x 600 mm
up to 420 °C
up to 20 K/min
up to 20 K/min
Press area
Max. temperature
320 x 320 mm
400 °C



Fields of application





Research News

SMC-Bandanlage am Fraunhofer ICT mit vorgelegtem rCF-Vliesstoff (Foto: Fraunhofer ICT).
SMC-Bandanlage am Fraunhofer ICT mit vorgelegtem rCF-Vliesstoff (Foto: Fraunhofer ICT).

Projekt VliesSMC

Im Januar 2021 wurde nach 10-monatiger Projektlaufzeit der 2. Projektbegleitende Ausschuss im AiF-Vorhaben-Nr. 21124 BG „VliesSMC“ erfolgreich durchgeführt. Mit den virtuell anwesenden 16 Partnern aus Industrie und Forschung diskutierten die Forschungsstellen die Ergebnisse der ersten Versuchskampagne zur Vliesstoff- sowie SMC-Herstellung. Insbesondere offene Fragestellungen hinsichtlich der unterschiedlichen textilen Herstellungsprozesse, der Herstellung und Handhabung der SMC-Halbzeuge, wie auch der Fließfähigkeit im Pressverfahren wurden adressiert.

Bei Interesse an der Mitwirkung im PA wenden Sie sich gern an:

Dipl.-Ing. (BA) Marcel Hofmann,
+49 371 5274-205
E-Mail

show more content 2

Further projects

Projekt HPF-Garnitur


11/2019-10/2021

Bei der Verarbeitung von Hochleistungsfasern zu Vliesstoffen tritt vor allem an den metallischen Arbeitselementen, z.B. Garnituren der Krempel, eine erhöhte Abrasion auf. Diese führt zu vorzeitigem Verschleiß der Garnituren und erhöhten Prozesskosten. Um diese Situation zu verbessern wird im Rahmen des Projektes „HPF-Garnituren“ sowohl die Garnitur hinsichtlich ihrer Materialoberfläche und Zahnung optimiert, als auch ein digitales Monitoringsystem zur Überwachung des Abnutzungsgrades entwickelt.

Ihr Ansprechpartner zum Projekt

Katharina Heilos, M. Eng.
+49 371 5274-227
E-Mail

show more content 2

Completed projects

Title

Duration

Editor

SusComTrab

09/2018-12/2020

K. Heilos, A. Große

rCF-Spritzguss

06/2019-04/2020

C. Albe

Carbonstickgrund

04/2018-03/2020

K. Heilos

VliesRTM

01/2017-12/2019

M. Hofmann

Epoxid-Vliesstoffe

10/2016-03/2019

G. Thielemann

Hybrid FKV

08/2016-01/2019

G. Thielemann

Cooperations & Networks
